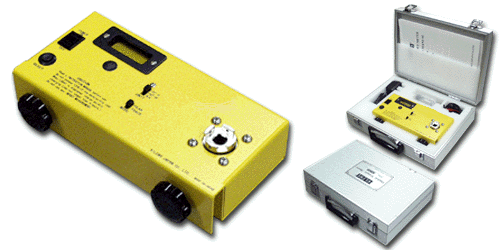

Torque Meters
These torque meters can be used to set the screwdriver torque for all Dixon Light Tool screwdriver models. Calibration of the electric screwdrivers is made simple and quick by using these digital readout Torque Meters. The meters are available in two torque ranges
0.15-10.00 Nm and 0.015-1.000 -m.
SPECIFICATIONS
Model No.
KTM-100/A
KTM-10/A
Measuring Range
Kgf-cm
1.5-100.0
0.15-10.00
Nm
0.15-10.00
0.015-1.000
In-lb
1.5-90.0
0.15-9.00
Accuracy
Within ± 0.5%
Power Supply
1.2V battery (5)
Charging Time
Within 8 hours
Continuous Operation at Full Charge
Approximately 30 hours
Battery Life
Rechargeable 300 times or more
Dimension
Mm
123 x 230 x 65(H)
Weight
Kg
2.8
Special Charger
Input AC 120V, 220-240V
Output DC 7.2V 120mA
